详细介绍

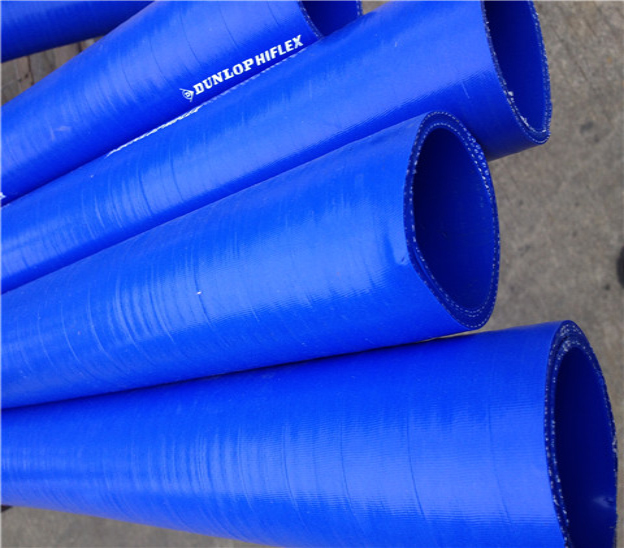

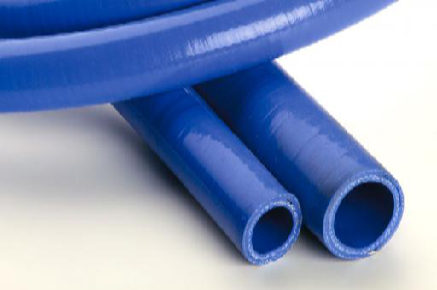

轻工业化制造机制钢缆硅橡胶管，有点比较适合用到装运或传输轻工业化制造用油，机动车热车机构件，翻斗车，海洋环境管等。如机动车翻斗车类，热车机，生产发电齿轮油，轻工业化制造用油等。 产品设备格局： 编：两层夹布网纹编 铁丝：使用单面不锈铁丝，行间距为10MM 产品的特征参数： ——工做高温位置‘-60ºC / +180ºC (-76ºF / +356ºF)在短期间内大约到220ºC (392ºF) ——极具优异拉伸性，壁有光滑洗涤，易清理不粘水，用清理物清理后不粘接任意使用量物。——无嗅、淡而无味,完成无毒害，没有任何人塑化剂和移除剂成份。设备配套连接头：TC连接管（直达更快连接管316L），SMS连接管，DIN快接，CLAMP，CLOCK，J螺纹标准连接管，等金属材质为304或316L任客人选定。品性审核：——蛙胶管明确规定欧共体电脑指令2008/95 / ECC的受到限制用到一些会伤化合物(RoHS)认证。Product application:Specially recommended for transportation or transportation of industrial oil,automotive engine parts, trucks, marine pipelines, etc.
Product structure:Weaving: two layers of cloth woven meshSteel wire: single layer of stainless steel wire,with the spacing of 10mm.
Product characteristics:——working temperature range -60 degree C / +180 degrees C (or -76 degrees F to +356 degree F) in a short period of time,it can reach 220 degrees C (392 degrees F)——With a good bend, the inner wall is smooth and clean, easy to be washed, no water sticking,After cleaned by cleaning materials, no residue remained——odorless, tasteless, non-toxic,without any additives and plasticizer.
Supporting connectors:TC connector (straight quick connector 316L), SMS connector, DIN quick connect, CLAMP, CLOCK, J threading connectors, etc,.The material is stainless steel 304 or 316L.
Quality certification:——in accordance with EU directive 2008/95 / ECC restrictions on the use of certain hazardous substances (RoHS) approval.
