特氟龙软管

所属分类：特氟龙软管
点击次数：0
发布日期：2020-06-12 00:00:00
在线询价

详细介绍

特氟龙软管产品特性：

编制管铁氟龙（PTFE）BT20:——工作上温差空间‘-60ºC / +220ºC在瞬期限内电动车续航到 260ºC ——包括耐酸性和酸性效果，有非常好的的化学反应不稳性。可耐油田，内腔有包括非常好的耐腐蚀性能性。——具备着可以弯曲的性，侧壁润滑保养，易的难以清理不粘水，用的难以清理物的难以清理后不粘着任意留物，可运用温度各类高压蒸汽式紫外线消毒和消毒。——具备有的塑性性，高耐磨平滑。的环保稳定性好。质量身份认证：——编织而成管铁氟龙依据俄罗斯FDA 21 CFR 177.2600,食品类级资格认证。合适ROHS生态环保标准Product characteristics:-The working temperature range of -60 to +220 degree Celsius and in a short period of time can reach 260 degrees Celsius.-strong acid and alkali resistance is good, excellent chemical stability.Resistant to high pressure.The inner wall has a good wear resistance.-With an excellent bend, the inner wall is smooth and clean, easy to be washed, no water sticking, After cleaned by cleaning materials, no residue remained. The steam disinfection and sterilization can be done under high temperature and high pressure.-good flexibility, wear resistance and smooth. Environmental protection performance is goodQuality certification:- Braided PTFE Smooth Hose pass the United States FDA 21 CFR 177.2600 (food and Drug Administration) food grade certification.- Braided PTFE Smooth Hose ROHS grade standard certification.

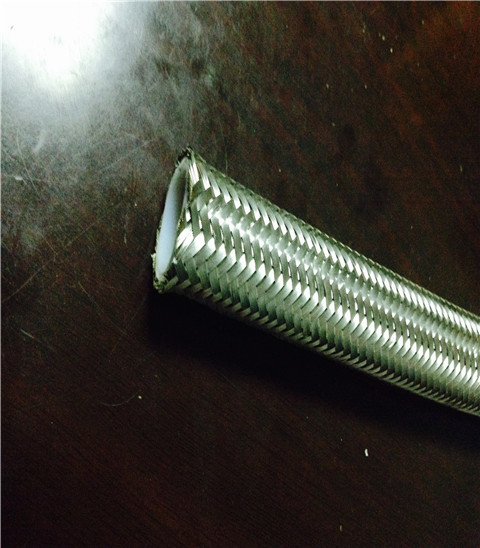

编织管铁氟龙（PTFE）BT20 Braided PTFE Smooth Hose BT20
编织管铁氟龙（PTFE）BT20 Braided PTFE Smooth Hose BT20
品名 PART NAME	内径 INNER DIA		壁厚 WALL THICKNESS		外径 OUTER DIA		工作压力 WORK PRESSURE		最大爆破压力 BURST PRESSURE		拆弯半径 BEND RADIUS		真空度 VACUUM		标准长度 STANDARD LENGTH
品名 PART NAME	(mm)	(inch)	+1.0/ -0.5mm	+0.04/0.02"	(mm)	(inch)	Bar（20ºC）	psi（68ºF）	Bar（20ºC）	psi（68ºF）	mm	inch	Bar	Psi	米/根 M/ PC
BT20-005	4.76	3/16"	0.75	0.30	8.00	0.32"	200.00	2901.00	600	8702.00	35	1.37	1.00	14.50	20
BT20-006	6.35	1/4"	0.75	0.3	9.30	0.35"	180.00	2611.00	540	7830.00	50	1.97	1.00	14.50	20
BT20-008	7.92	5/16"	0.60	0.23	12.30	0.48"	150.00	2176.00	450	6527.00	60	2.36	1.00	14.50	20
BT20-009	9.52	3/8"	0.65	0.35	12.80	0.51"	130.00	1885.00	390	5655.00	90	3.54	0.93	13.49	20
BT20-012	12.70	1/2"	0.80	0.38	17.80	0.91"	100.00	1450.00	300	4350.00	100	3.94	0.91	13.19	20
BT20-015	15.80	5/8"	0.80	0.38	21.80	0.87"	90.00	1305.00	270	3915.00	120	4.73	0.89	12.91	20
BT20-019	19.05	3/4"	1.00	0.40	27.00	1..08"	70.00	1015.00	210	3045.00	150	5.90	0.79	11.45	20
BT20-025	25.40	1.00"	1.00	0.40	32.20	1.25"	60.00	870.00	180	2610.00	300	11.80	0.40	5.80	20
BT20-032	32.00	1.00"	1.00	0.40	40.20	1.53"	46.00	870.00	180	2610.00	400	15.80	0.40	5.80	20
BT20-038	38.00	1.5"	1.20	0.43	47.80	1.85"	30.00	870.00	180	2610.00	450	17.80	0.40	5.80	20
BT20-051	51.00	2.00"	1.50	0.58	60.50	2.30"	25.00	870.00	180	2610.00	450	17.80	0.40	5.80	10
