详细介绍
设备机构：内部：PTFE气泡状，物料说明：——岗位温度表区域‘-60ºC / +220ºC 在多日间内高达到 260ºC ——存在挺不错耐强酸酸性和酸性性能指标，有挺不错的生物学相对稳相关性。可不可以耐高压低压，内壁上有存在良好耐腐性。——兼有很好变形性，壁有竖直清理，易刷洗不粘水，用刷洗物刷洗后不映照什么残余物，可用到耐超高压低压蒸汽发生器酒精消毒和高压蒸汽灭菌。——无嗅、无气味,压根没有毒，可含丝毫塑化剂和修改剂的成分。压根符合国家产品FDA和菌物医疗器具级USP VI的想要。——这个管一般来说是表层为乳紫色或半透热熔胶。xk星空体育

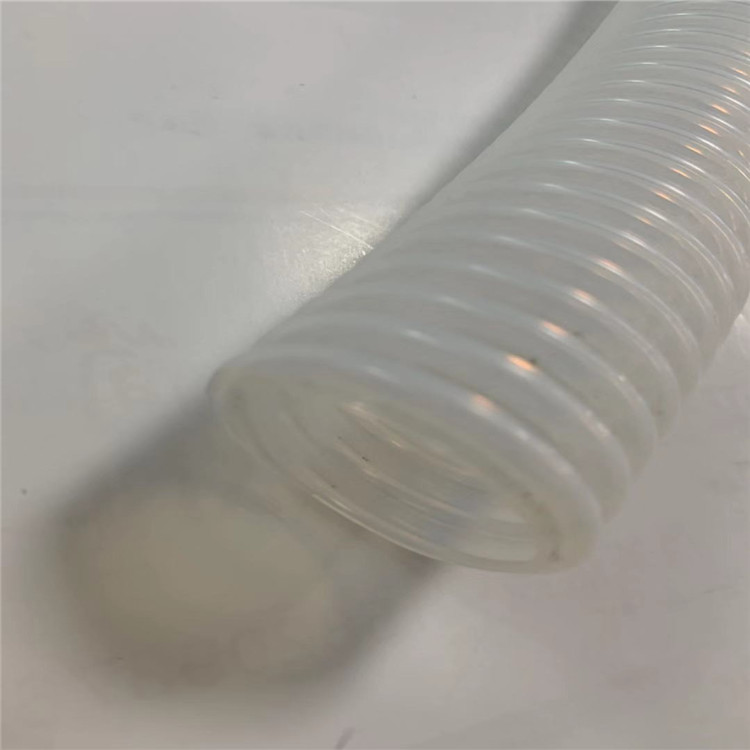

也可不同客要求茶汤颜色来定制大小表层。 服务设施管接头：TC接线头（连通高效接线头316L），SMS接线头，DIN快接，CLAMP，CLOCK，J螺孔接线头，等才质为304或316L任老客户区分。 品控认证服务：——透明硅胶橡胶软管根据美FDA 21 CFR 177.2600(商品和口服药物监管局)商品质认真。Product structure:Inner layer: PTFE corrugated
Product characteristics:-The working temperature range of -60 to +220 degree Celsius and in a short period of time can reach 260 degrees Celsius.-strong acid and alkali resistance is good, excellent chemical stability.Resistant to high pressure.The inner wall has a good wear resistance.-With an excellent bend, the inner wall is smooth and clean, easy to be washed, no water sticking, After cleaned by cleaning materials, no residue remained. The steam disinfection and sterilization can be done under high temperature and high pressure.-Odorless, tasteless, non-toxic, does not contain any additives and plasticizer. Fully comply with the requirements of food FDA and biological medical grade USP.-the outer layer of the hose is milky white silicone or transparent silicone. The color can be customized according to customer's needs
Supporting connectors:TC connector (straight quick connector 316L), SMS connector, DIN quick connect, CLAMP, CLOCK, J threading connectors, etc,.The material is stainless steel 304 or 316L.
Quality certification:-pass the United States FDA 21 CFR 177.2600 (food and Drug Administration) food grade certification.
| 透明PTFE四氟波纹软管BW00 |
|
品名
PART NAME | 内径
INNER DIA | 厚度
WALL THICKNESS | 外径
OUTER DIA | 工作压力
WORK PRESSURE | 爆破压力
BURST PRESSURE | 弯曲半径
BEND RADIUS | 标准长度
STANDARD LENGTH |
| mm | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | 米/根
METERS PER PC |
| BW00-006 | 6.35 | 1/4" | 0.80 | 0.031" | 11.50 | 0.453" | 4.00 | 58.00 | 14 | 203.00 | 20 | 0.79 | 20 |
| BW00-008 | 7.92 | 5/16" | 0.80 | 0.031" | 12.50 | 0.492" | 4.00 | 58.00 | 14 | 203.00 | 22 | 0.87 | 20 |
| BW00-009 | 10.30 | 3/8" | 0.90 | 0.035" | 14.95 | 0.588" | 4.00 | 58.00 | 14 | 203.00 | 25 | 1.00 | 20 |
| BW00-012 | 12.70 | 1/2" | 0.90 | 0.035" | 17.90 | 0.705" | 4.00 | 58.00 | 14 | 203.00 | 30 | 1.18 | 20 |
| BW00-015 | 16.70 | 5/8" | 0.90 | 0.035" | 21.85 | 0.86" | 3.00 | 45.00 | 12 | 175.00 | 35 | 1.37 | 20 |
| BW00-019 | 19.80 | 3/4" | 1.00 | 0.04" | 26.40 | 1.039" | 3.00 | 45.00 | 12 | 175.00 | 55 | 2.20 | 20 |
| BW00-025 | 26.11 | 1.00" | 1.00 | 0.04" | 34.30 | 1.35" | 3.00 | 45.00 | 12 | 175.00 | 63 | 3.00 | 20 |
| BW00-032 | 32.50 | 1.25" | 1.20 | 0.048" | 35.50 | 1.398" | 3.00 | 45.00 | 12 | 175.00 | 100 | 11.80 | 20 |
| BW00-038 | 38.00 | 1.5" | 1.50 | 0.059" | 43.00 | 1.62" | 3.00 | 45.00 | 12 | 175.00 | 110 | 11.80 | 20 |
| BW00-051 | 51.00 | 2.00" | 1.50 | 0.059" | 58.00 | 1.75“" | 2.00 | 120.00 | 6 | 2610.00 | 125 | 11.80 | 10 |
