钻石硫化橡胶硅橡胶钢丝绳橡胶软管FP31

Platinum vulcanization silicone wire hose FP31

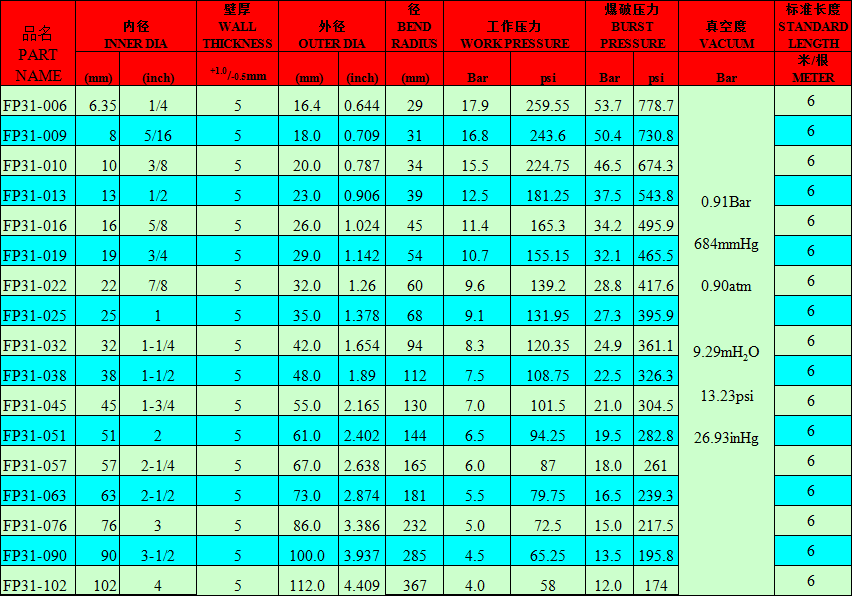

注：1.标准规范制造时间为6米（个性化可定制10米），可能做切短。各种的內径规范的要求可能会根据用户的规范的要求来原创定制。 2.在xk星空体育 在技术参数表格中测式是遵循室温，标层结压形态。当阻力保持不变时，热度每增长范围100度，阻力会走低百分之15。REMARKS: 1, Standard length is 6 meters and we can customize the hose length according to customers' needs.2, The test in the parameter list is in accordance with the normal temperature and the standard atmospheric pressure state. When the pressure is constant, the temperature rise by 100 degrees, the pressure will drop by 15%. 品牌选用：  尤为推介主要用于运输车或输送带高低温环境食品原料、化妆师品、有机化工和制作药品服务行业和海洋生物项目用的介质溶剂或半介质溶剂射流.  （如抽食调味品原料类乳所制品；调味品原料机械机械用链接管；洒类用链接套管；油类机械抽食用的链接管，医疗机械链接聚氨酯保温管、套管等）    食品节构：  编制而成而成：四层夹布网纹编制而成而成  钢条：按照双层304不透钢条，排距为10MM    软件因素：  ——运作室温位置‘-60ºC / +180ºC (-76ºF / +356ºF)在短暂间内可以达到到  220ºC (392ºF)  ——含有较好可以弯曲的性，内壁上光滑平整卫生，易除垢不粘水，用除垢物除垢后不粘着其它存留物，可选用温度油田蒸汽加热清洁和灭菌处理。  ——无嗅、无色无味,彻底甘平，包涵其中塑化剂和更改剂化学物质。彻底符合耍求肉食品FDA和生物体医用品级USP的耍求。  ——新产品途经耐中高温180ºC*4小時耐中高温硫化橡胶后，完全不分引起一点可分解物，承极性压性能强，实际的参阅大数据表。    整套搭配线接头：  TC接线头（直达更快的接线头316L），SMS接线头，DIN快接，CLAMP，CLOCK，J内螺纹接线头，等的材料为304或316L任用户购选。    品质质量审核：  ——白金和铂金透明硅胶胶管能够美利坚FDA 21 CFR 177.2600(美食加工和中成药方法局)美食加工级注册。  ——珀金硅胶制品胶管凭借欧洲德国FDA/BfR零件及运转情况 XV规则企业认正和LFBG和BGVV规则企业认正。  ——白金热熔胶橡胶管适用采用国外医疗器材USP Class VI级规格认正。  ——白金透明硅胶管严格按照欧洲联盟指令表2008/95 / ECC的约束安全使用任何不好东西(RoHS)认同。Product application:Widely used for transportation or delivery of low temperature food, cosmetics, chemical materials or the fluid or semi liquid fluid of pharmaceutical industry and biological engineering.(such as the suction of food or dairy products; the connection hoses used on food machinery liquor equipment; oil production equipment and medical equipment, etc.)

Product structure:Weaving: 4 layers of cloth woven meshSteel wire: single layer of 304 stainless steel wire, the spacing is 10mm

Product characteristics:-The working temperature range: -60 to +180 degrees Celsius (or -76 to +356 degrees Fahrenheit) and it can reach 220 degrees Celsius (or 392 degree Fahrenheit) in a short period of time-With a good bend, the inner wall is smooth and clean, easy to be washed, no water sticking, After cleaned by cleaning materials, no residue remained. The steam disinfection and sterilization can be done under high temperature and high pressure.-Odorless, tasteless, non-toxic, does not contain any additives and plasticizer. Fully comply with the requirements of food FDA and biological medical grade USP.-Product will not produce any decomposition after high temperature of 180 degrees Celsius * 4 hours of high temperature Vulcanization with strong bearing capacity of negative and positive pressure.Supporting connectors:TC connector (straight quick connector 316L), SMS connector, DIN quick connect, CLAMP, CLOCK, J threading connectors, etc,.The material is stainless steel 304 or 316L.

Quality certification:-Platinum silicone hose passes the United States FDA 21 CFR 177.2600 (food and Drug Administration) food grade certification.-Platinum silicone hose passes the German FDA/BFR parts XV standard certification and LFBG and BGVV standard certification.-Platinum silicone hose in accordance with the United States Class VI USP grade standard certification.-Platinum silicone hose has passed the certificate of limitation usage of hazardous substances (RoHS) in accordance with the EU directive 2008/95/ECC
