白金和铂金塑炼透明硅胶不锈钢丝排水管FP31

Platinum vulcanization silicone wire hose FP31

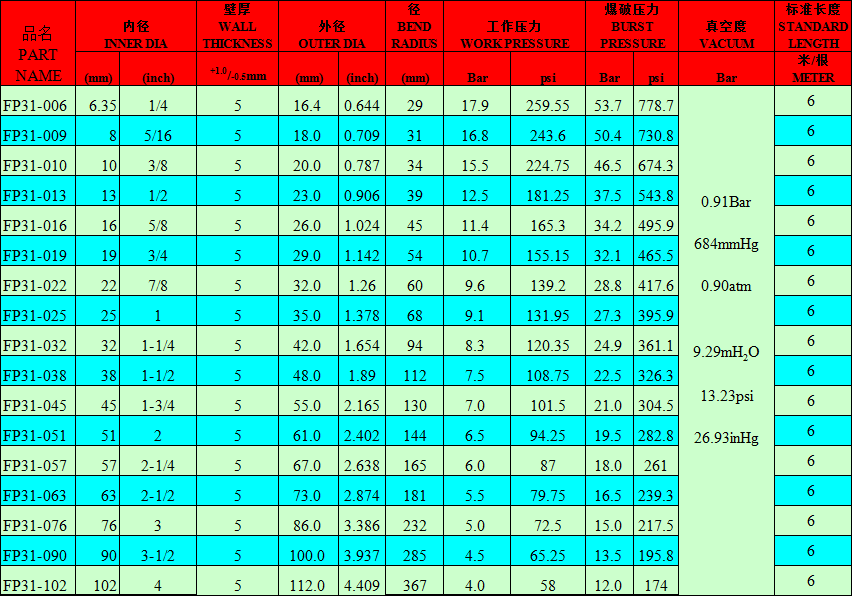

注：1.标制造大小为6米（特种可定制10米），还可做切短。别的的公称直径追求还可不同投资者的追求来定做。 2.在xk星空体育 在指标表格测试测试是代履行常温形态，规范标准大气质量压形态。当阻力差改变时，摄氏度每上升的力度100度，阻力差会越来越低百分之15。REMARKS: 1, Standard length is 6 meters and we can customize the hose length according to customers' needs.2, The test in the parameter list is in accordance with the normal temperature and the standard atmospheric pressure state. When the pressure is constant, the temperature rise by 100 degrees, the pressure will drop by 15%. 好产品运用：  尤其是推荐英文用来运送或气流输送高地温食物、化妆造型品、精细化工和医药化工市场和生物学过程用的液状体或半液状体流体力学.  （如抽液食物类乳产品；食物自动化机械仪器用联系管；名酒用联系管内；油类仪器抽液用的联系管，医疗仪器联系压缩空气管、管内等）    软件空间结构：  编识：四层夹布网纹编识  纲丝：进行单双层304不锈纲丝，间隔距离为10MM    产品的性质：  ——工作中室内温度范畴‘-60ºC / +180ºC (-76ºF / +356ºF)在瞬时期内能够达到到  220ºC (392ºF)  ——含有比较好变形性，内部通畅干净的，易清洁工作不粘水，用清洁工作物清洁工作后不粘着某些残余物物，可用到高温环境超高压蒸汽式清洁消毒和灭菌处理。  ——无嗅、没有气味,仍然无气味，富含随便塑化剂和生成剂组成。仍然具备面制品FDA和生物工程医疗器材级USP的标准。  ——产品的经历温度180ºC*4一小时温度硫化橡胶后，完全不分有所以分解成物，承极性压水平强，按照借鉴数剧表。    配建金属接头：  TC金属插头（直连便捷金属插头316L），SMS金属插头，DIN快接，CLAMP，CLOCK，J螺纹标准金属插头，等面料为304或316L任朋友选取。    高品质认证服务：  ——白金和铂金热熔胶橡胶软管顺利通过美FDA 21 CFR 177.2600(保健肉制品和肿瘤药物管控局)保健肉制品质资质认证。  ——钻石蛙胶胶管依据欧洲德国FDA/BfR配件 XV标淮v认正和LFBG和BGVV标淮v认正。  ——钻石硅胶制品胶管按照进行加拿大医疗仪器USP Class VI级基准身份验证。  ——珀金蛙胶管按照欧盟成员国命令2008/95 / ECC的约束食用这些造成损害化学物质(RoHS)肯定。Product application:Widely used for transportation or delivery of low temperature food, cosmetics, chemical materials or the fluid or semi liquid fluid of pharmaceutical industry and biological engineering.(such as the suction of food or dairy products; the connection hoses used on food machinery liquor equipment; oil production equipment and medical equipment, etc.)

Product structure:Weaving: 4 layers of cloth woven meshSteel wire: single layer of 304 stainless steel wire, the spacing is 10mm

Product characteristics:-The working temperature range: -60 to +180 degrees Celsius (or -76 to +356 degrees Fahrenheit) and it can reach 220 degrees Celsius (or 392 degree Fahrenheit) in a short period of time-With a good bend, the inner wall is smooth and clean, easy to be washed, no water sticking, After cleaned by cleaning materials, no residue remained. The steam disinfection and sterilization can be done under high temperature and high pressure.-Odorless, tasteless, non-toxic, does not contain any additives and plasticizer. Fully comply with the requirements of food FDA and biological medical grade USP.-Product will not produce any decomposition after high temperature of 180 degrees Celsius * 4 hours of high temperature Vulcanization with strong bearing capacity of negative and positive pressure.Supporting connectors:TC connector (straight quick connector 316L), SMS connector, DIN quick connect, CLAMP, CLOCK, J threading connectors, etc,.The material is stainless steel 304 or 316L.

Quality certification:-Platinum silicone hose passes the United States FDA 21 CFR 177.2600 (food and Drug Administration) food grade certification.-Platinum silicone hose passes the German FDA/BFR parts XV standard certification and LFBG and BGVV standard certification.-Platinum silicone hose in accordance with the United States Class VI USP grade standard certification.-Platinum silicone hose has passed the certificate of limitation usage of hazardous substances (RoHS) in accordance with the EU directive 2008/95/ECC
