详细介绍
APP： 白金和铂金加硫蛙胶塑料软管根据其中聚脂编识，广泛应用于低压低输料夜体，可来进行SIP和CIP清晰，具备着很好的的抗压业务能力。产品的根据过量的物理化学反应，化学反应和生物工程测试高达FDA CFR 177.2600 不意见建议用作抽真空环镜； 好产品特征： 珀金混炼硅胶材料软BG20类型 ——办公温度表时间范围‘-60ºC / +200ºC ——存在挺不错弯度性，可选择高溫高电压力空气压缩杀菌消毒SIP刷洗和高溫高电压力刷洗CIP。 ——无嗅、无臭,彻底无气味，包括其余塑化剂和移除剂营养成分 ——某些管平常是半透亮的，也可以洞察分析到流体力学的最新动向。xk星空体育
也可可根据加盟商需提交本色来定制大小。 品格身份验证： ——白金和铂金硅胶材料排水管采用韩国FDA 21 CFR 177.2600(美食饮料和肿瘤药物服务监管局)美食饮料级v认证。 ——欧洲共同体命令2008/95 / ECC的利用有些危害成分(RoHS)肯定。 ——珀金矽胶橡胶管贴合ISO10993,NSF51和英国药典3.1.9的想要。Remarks: Standard length: 50 meters or customized according to customer's special needs.

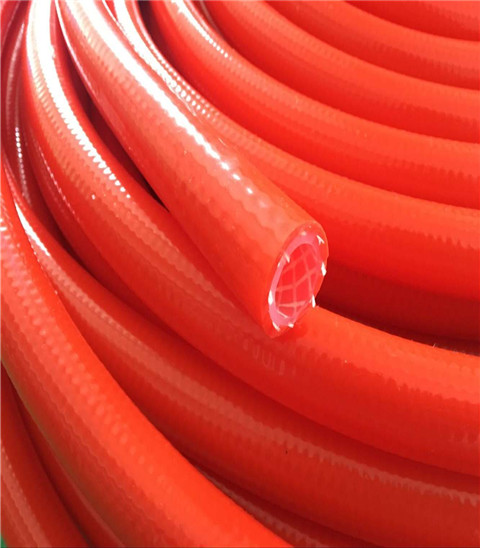

Product application:The polyester weaving added in the middle for the platinum vulcanization silicone hose, which can be used to delivery the low pressure liquid and to proceed with SIP cleaning and CIP cleaning. With good compression resistance and meet FDA CFR 177.2600 certificate after plenty of physical, chemical and biological testing. Not recommended for vacuum environment.
Product characteristics:-The working temperature range of -60 to +200 degree Celsius.-With a good bend.high temperature and high pressure steam disinfection cleaning SIP and high temperature and high pressure cleaning CIP can be used.-Odorless, tasteless, non-toxic, does not contain any additives and plasticizer. -These tubes are usually translucent and the movement of fluid inside can be observed. The hose color can be customized according to customer's needs.
Quality certification:-Platinum silicone hoses pass the United States FDA 21 CFR 177.2600 (food and Drug Administration) food grade certification.-Platinum silicone hoses pass the German BFR parts XV standard certification and LFBG certification.-Platinum silicone hose is in accordance with the United States Class VI USP grade standard certification.-Platinum silicone hose is in accordance with the EU directive 2008/95/ECC limitation usage of certain hazardous substances (RoHS) recognition.-Platinum silicone hose is in accordance with ISO10993, NSF51 and European Pharmacopoeia 3.1.9 requirements.
铂金硫化硅胶软BG20系列
Platinum vulcanization silicone hose BG20 |
|
品名
PART NAME |
内径
INNER DIA | 外径
OUTER DIA | 拆弯半径
BEND RADIUS | 工作压力
WORK PRESSURE | 最大爆破压力
BURST PRESSURE | 标准长度
STANDARD LENGTH |
| (mm) | (inch) | (mm) | (inch) | (mm) | Bar | psi | Bar | psi | M |
| BG20-003 | 3.00 | 1/8 | 9.00 | 0.354 | 13 | 27.3 | 395.85 | 81.9 | 914 | 20 |
| BG20-004 | 4.00 | 1/6 | 10.00 | 3.94 | 25 | 26.2 | 379.9 | 78.6 | 848 | 20 |
| BG20-005 | 5.00 | 3/16 | 11.00 | 0.43 | 35 | 25.0 | 362.5 | 75.0 | 769 | 20 |
| BG20-006 | 6.35 | 1/4 | 13.20 | 0.47 | 48 | 23.1 | 334.95 | 69.3 | 725 | 20 |
| BG20-008 | 7.93 | 5/16 | 15.00 | 0.59 | 55 | 21.2 | 307.4 | 63.6 | 653 | 20 |
| BG20-010 | 9.52 | 3/8 | 17.00 | 0.67 | 70 | 19.1 | 276.95 | 57.3 | 609 | 20 |
| BG20-012 | 12.70 | 1/2 | 22.00 | 0.87 | 80 | 16.2 | 234.9 | 48.6 | 493 | 20 |
| BG20-016 | 15.87 | 5/8 | 27.00 | 0.98 | 90 | 15.5 | 224.75 | 46.5 | 435 | 20 |
| BG20-019 | 19.05 | 3/4 | 31.00 | 1.22 | 100 | 14.5 | 210.25 | 43.5 | 319 | 20 |
| BG20-022 | 22.20 | 3/4 | 33.00 | 1.36 | 120 | 11.0 | 159.5 | 33.0 | 290 | 20 |
| BG20-025 | 25.40 | 1 | 37.00 | 1.50 | 150 | 9.0 | 130.5 | 27.0 | 261 | 20 |
| BG20-032 | 31.75 | 1-1/4 | 44.00 | 1.81 | 200 | 8.0 | 116 | 24.0 | 218 | 20 |
